Modelo: ST208S
Categoria: Wireless Bridge

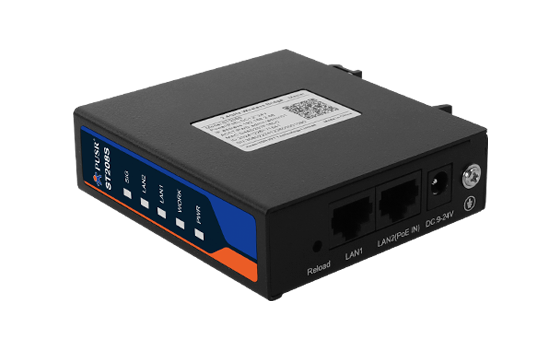

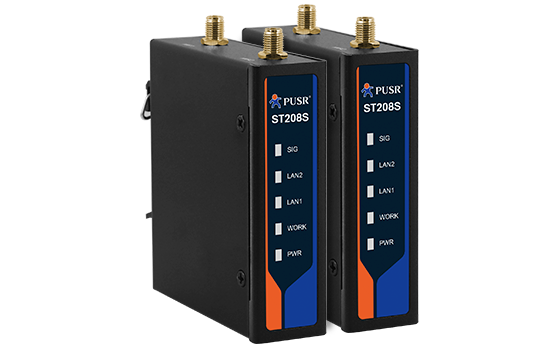

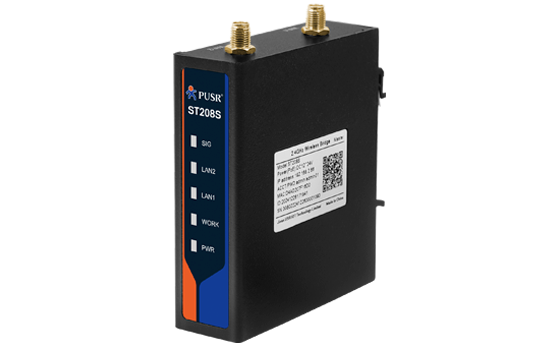

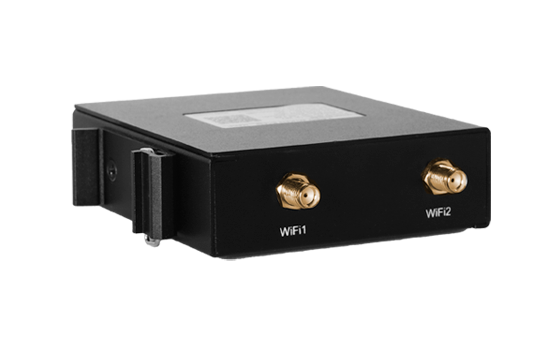

El ST208S es un puente inalámbrico 2,4G de alto rendimiento. Equipado con antenas duales de alta ganancia, tiene una velocidad inalámbrica teórica de 300 Mbps y un alcance de comunicación de hasta 500 metros. Admite dos fuentes de alimentación
Solicitar cotizacion
El ST208S es un puente inalámbrico 2,4G de alto rendimiento. Equipado con antenas duales de alta ganancia, tiene una velocidad inalámbrica teórica de 300 Mbps y un alcance de comunicación de hasta 500 metros. Admite dos métodos de suministro de energía, PoE y DC, y viene con 2 puertos Gigabit Ethernet.
| Model | ST208E |
| Description | Standard version |
| Input voltage | 9 - 24 VDC, with PoE in and DC power socket |
| Pilot lamp | POW、WORK、LAN1、LAN2、SIG |
| Working Current | DC: 0.3A@12V aver, 0.4A@12V max POE：0.4A@12V aver, 0.55A@12V max |
| Antennacoverage angle | Horizontal 60°, vertical 30° |
| WirelessStandards | IEEE 802.11b/g/n |
| Output Power | Up to 20 dBm |
| Antenna gain | Internal Antenna:8dBi ; External antenna:5dBi |
| Channel bandwidth | 20/40Mhz |
| MIMO | 2*2 |
| Max rate | 300Mbps |
| Max coverage of WiFi | 1000 meters （Note: Affected by the environment, the actual measurement shall prevail.） |
| Ethernet Cable | 100 meters (Label:The transmission distance is related to the quality of the network cable, and the actual measurement shall prevail) |
| Ethernet | 2*RJ45, 10/100M, LAN 2 supportsPoE in |
| Work Mode | Two paired parameters in one packaging box |
| LAN settings | Static IP, dynamically obtained |
| Wireless settings | 802.11b/g/n mode; The encryption method can choose WPA/WPA2; SSID broadcast/hide; bandwidth selection; transmit power setting |
| Manage | System logs; WEB login; Unified management of DM cloud platform; SSH tool |
| System Tools | Ping/Traceroute/Nsloukup tool |
| Other | Password modification; Firmware upgrade; Parameter import/export; Restore to factory;Scheduled restart |
| Dimension | 140.7*77.39*53mm |
| Weight | 144.4g |
| Installation | Pole Mounting, wall mounting |
| Shell | IP64 waterproof |
| Reload | Press and hold the reload button for 5-15 seconds to release and restore to factory settings |
| Operating Temperature | -40°C ~ +70°C |
| Operating Humidity | 10 ~ 95 %(Non-condensing) |
