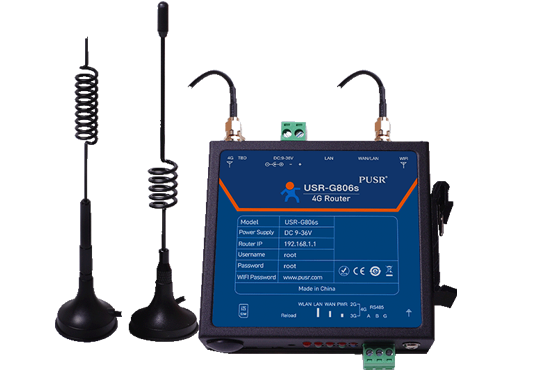

Modelo: USR-G806S-G
Categoria: 4G LTE VPN Router
USR-G806s es un enrutador avanzado industrial 4g lte que integra tecnologías 4G LTE, Wi-Fi, RS485, GPS y VPN para proporcionar una conectividad a Internet fácil, confiable y segura y acceso a datos de alta velocidad para la red de equipos.
Solicitar cotizacion
USR-G806s es un enrutador avanzado industrial 4g lte que integra tecnologías 4G LTE, Wi-Fi, RS485, GPS y VPN para proporcionar una conectividad a Internet fácil, confiable y segura y acceso a datos de alta velocidad para redes de equipos.
| Cellular Interface | Antenna |
| SIM card | 1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots |
| Ethernet | 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
| Indicators | LED |
| WiFi Interface | Standards & Frequency |
| Data speed | IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps |
| Antenna | 1 x SMA-K |
| Transmission distance | 80 meters by line of sight.Actual transmission distance depends on environment of the site. |
| Power Supply | Adaptor |
| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection |
| Input voltage | DC 9~36V |
| Working power | Average 270mA/12V |
| Serial Interface | RS485/RS232(alternative) |
| Baud rate(bps) | 1200,2400,4800,9600,19200,38400,57600,115200,230400 |
| Data bits | 8 |
| Stop bits | 1,2 |
| Parity | NONE,ODD,EVEN |
| Physical Characteristics | Housing |
| Dimensions | 112.0*84.0*25.0 mm(L*W*H） |
| Installation method | Panel mounting, DIN-Rail mounting |
| EMC | Static IEC61000-4-2, level 2 Pulsed Electric Field IEC61000-4-4, level 2 Surge IEC61000-4-5, level 2 |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+125℃ |
| Operating humidity | 5%～95%RH（non-condensing) |
| Others | Reload |
| TBD | Debug interface (TTL Level) |
| Embedded Watchdog | Device runs self-detection, auto recovers from malfunctions |
| Certificate | CE,CCC |
| Network Connection | WAN protocol |
| LAN protocol | ARP, DHCP server, NAT |
| 4G network access | Auto APN/VPDN, private network Access authentication: CHAP/PAP |
| WLAN security | Open system,WPA/WPA2 PSK TKIP/AES encryption |
| IP routing | Static routing |
| Network diagnosis | Ping,route trace,DNS |
| Serial modem | Work mode |
| Sockets | 4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC |
| Modbus RTU toTCP | Support |
| Device management | Configuration |
| Remote management | Telnet, SSH, AT command,SNMP |
| PUSR platform | Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router |
| Security | Failover backup |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| VPN | Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols |
| Service | DDNS |
| Alarm | Email,SMS |
| Region | EMEA&Australia & Latin America & New Zealand |
| Frequency | TDD-LTE |
| FDD-LTE | B1/B3/B5/B7/B8/B20/B28 |
| WCDMA | B1/B5/B8 |
| GSM/GPRS/EDGE | 850/900/1800MHz |
