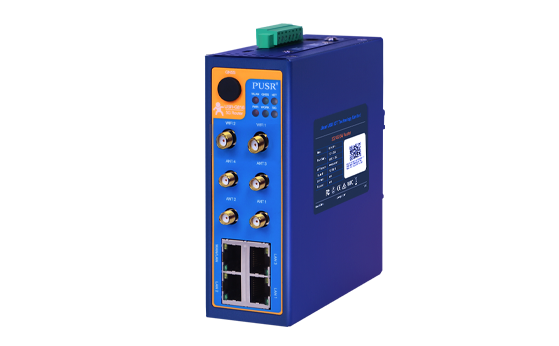

Modelo: USR-G816W-G
Categoria: 5G LTE WIFI Router
USR-G816 es un enrutador industrial 5g lte multipuerto con funciones de alta velocidad, gran ancho de banda y baja latencia. Adopta estándares de diseño de grado industrial y admite fuente de alimentación de terminales de amplio voltaje y temperatura amplia.
Solicitar cotizacion
USR-G816 es un enrutador industrial 5g lte multipuerto con funciones de alta velocidad, gran ancho de banda y baja latencia. Adopta estándares de diseño de nivel industrial y admite fuente de alimentación de terminales de amplio voltaje y temperatura, protección EMC industrial y vigilancia de hardware.
| Cellular Interface | Frequency |
| Maximum Transmission Data Rate | 5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL); 5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL) LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL) |

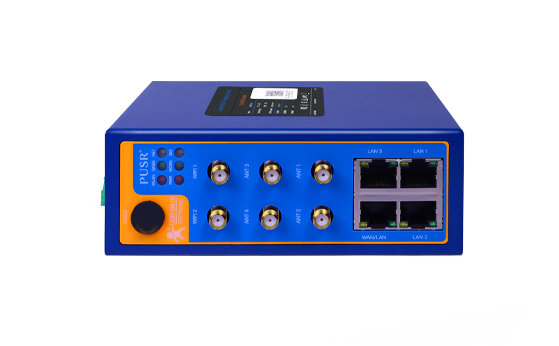

| Antennas | 4 × SMA-K Connectors (Center PIN: SMA Female) |
| SIM Slot | 2 x (3 V/1.8 V) mini-SIM(2FF) Push-push type slot (SIM2 can be customized with a built - in eSIM) |
| Ethernet Interface | WAN |
| LAN | 3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV RMS |
| Indicators | PWR |
| WORK | green, blinking every 1second when the router is ready and working properly |
| NET | Mobile network type LEDs NET lights on after device is connected to the network. Green stands for 5G, green and red for 4G, and red for 3G |
| SIG | Mobile signal strength indication LED Green represents excellent signal, two-color light represents good signal, red represents poor signal |
| WLAN | always solid on when WiFi is enabled and working properly |
| WAN | LED blinking When Connection established and data is being transferred over this port. |
| Wi-Fi Interface | Antennas |
| MIMO | 2×2 |
| Standards | Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz) |
| Modes | AP/AP+STA/AP+WDS repeater |
| Data speed | Up to 1733Mbps wireless operation rate at 5.8GHz |
| Security | Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP |
| Transmission distance | 200 meters by line of sight. Actual transmission distance depends on environment of the site. |
| GNSS (Optional) | Antenna |
| Technology | GPS, GLONASS, BeiDou, Galileo |
| Protocol | NMEA 0183 |
| Power Supply | Adapter |

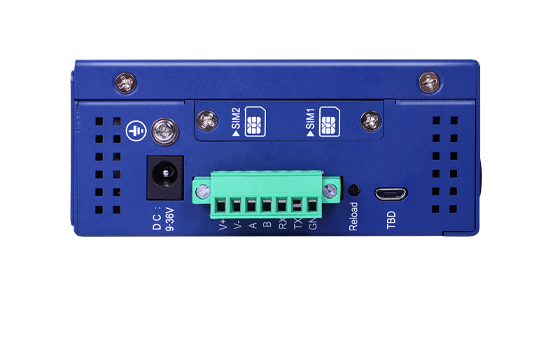

| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block(V+,V-),reverse polarity protection |
| Input voltage range | DC9-36V |
| Power consumption | Average current 630mA@12V and the maximum current 1.6A@12V |
| Serial Interface | Numbers |
| Baud Rate(bps) | 1200,2400,4800,9600,19200,38400,57600,115200,230400,460800(only 485) |
| Signal definition | RS232: TXD, RXD, GND RS485: A, B, GND |
| Data bits | 7,8 |
| Stop bits | 1,2 |
| Parity | NONE, ODD, EVEN |
| Physical Characteristics | Casing material |
| Dimensions | 125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not included) |

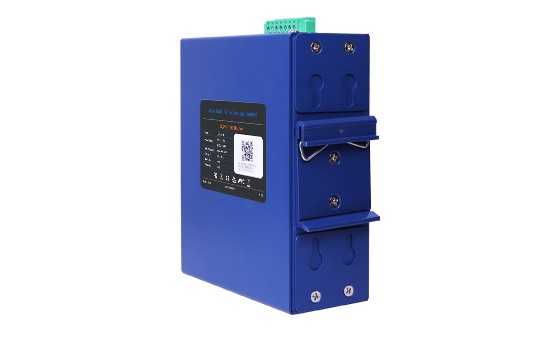

| Installation | Desktop, wall mounting and DIN-rail mounting |
| EMC | Static IEC61000-4-2, level 3 Pulsed Electric Field IEC61000-4-4, level 3 Surge IEC61000-4-5, level 3 |
| Operating Temperature | -35℃ ~ +40℃ with adapter, after the PUSR test and evaluation, the product's actual operating temperature can reach-35℃ ~ 75℃. |
| Storage Temperature | -40℃～+125℃ (Non-condensing) |
| Relative Humidity | 5%~95% (Non-condensing) |
| Others | Reload button |
| TBD | Debug interface (TTL Level) |
| Ground protection | Screw |
| Built-in | Watchdog |
| Software | Network Protocols |
| VPN | LT2P, PPTP,PPTP,L2TP,IPsec,Openvpn,GRE, VXLAN |
| Management | Web UI, PUSR cloud |
| Reliability | WAN Failover, Dual SIM Backup |
| Serial port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP) |
| Certificate | In progress |
